Minimally Invasive Bunion System
About
ARTEMIS™ MIBS

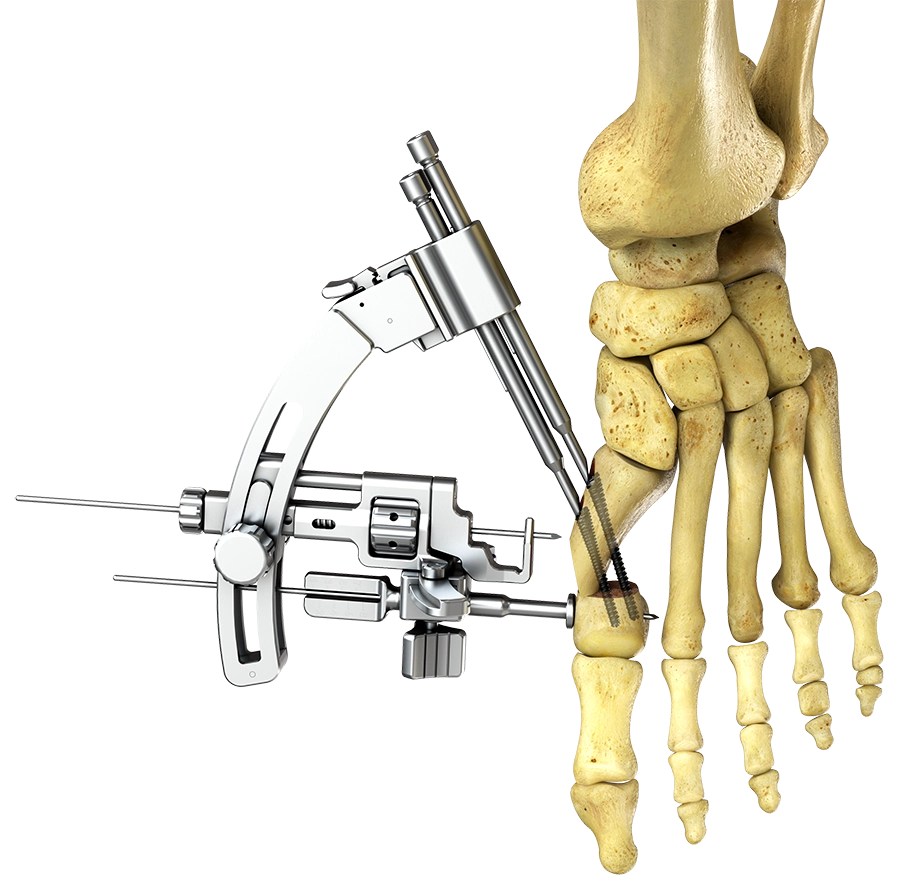

The ARTEMISTM Minimally Invasive Bunion System, MIBS, provides comprehensive burr and implant options for the minimally invasive, percutaneous fixation in the foot and ankle. ARTEMISTM screws are provided in diameters of 3.0mm and 4.0mm and are manufactured from titanium alloy (Ti-6Al-4V, per ASTM F136).
ARTEMISTM implants have been designed with a chevron head and fully threaded cutting flutes to maximize compression by seating flush with the near cortex, preserving soft tissue structures.
ARTEMISTM implants have been designed with a chevron head and fully threaded cutting flutes to maximize compression by seating flush with the near cortex, preserving soft tissue structures.
Simplified Screw Translation
Quick Adjust Drill Guide
Easily adjust screw trajectory M/L in 1mm increments by sizing the drill guide up or down.
Slotted Canal Hook
Metatarsal Shaft Stability & Translation
The slotted canal hook allows for K-Wire placement to the lateral cortex, enhancing stability and allowing for shaft translation.
Adjustable Rotation
Screw Angle Arch
Quickly adjust screw trajectory angle by unlocking, sliding, and re-locking the guide arch.
Precise Capital Fragment Rotation
Metered Rotation & Enhanced Stability
Adjust the rotation of the capital fragments with a simple unlock/lock in 1° degree increments.
Constant Pitch
Optimal Fixation
Reduces the risk of complications due to over compression, especially in Hallux Valgus reconstruction.
45°
Chamfer Head Angle
Allows for flush implant seating with the near cortex to reduce soft tissue irritation
Self Drilling
Three Cutting Flutes
Features forward cutting flutes designed to provide self drilling & tapping capability.
Cobalt Chrome
Cannulated for use with Cobalt Chrome guide wires to allow for precise placement with enhanced pull out strength.
ARTEMISTM MIBS
MINIMALLY INVASIVE, MAXIMUM RECONSTRUCTION
Implant Options
Constant Pitch Chamfer Head
Diameter
Lengths
3mm
12mm - 50 mm (2mm inc.)
4mm
16mm - 70mm (2mm inc.)
Burr Options
Shannon Burrs
Diameter
Drill Tip Length
2mm
8mm
2mm
12mm
2.2mm
20mm
3.0mm
20mm
3.0mm
30mm
Wrap Y Plates
Diameter
Drill Tip Length
3mm
10mm
4mm
13mm
MINIMALLY INVASIVE BUNION SYSTEM
The ARTEMIS™ Minimally Invasive Bunion System (MIBS) provides comprehensive burr and implant options for minimally invasive, percutaneous fixation in the foot and ankle.
ARTEMIS™ screws come in 3.0mm and 4.0mm diameters, are manufactured from titanium alloy (Ti-6Al-4V per ASTM F136), and are available in a wide range of lengths in 2mm increments to support various percutaneous fixation needs. Each implant features a chevron head and fully threaded cutting flutes designed to maximize compression by seating flush with the near cortex while preserving soft tissue structures.
Ready to use ARTEMISTM MIBS in your practice?
Contact US TO LEARN MORE
