Vilex H2

Total Ankle Replacement

2-COMPONENT, SEMI-CONSTRAINED IMPLANT

Watch Video
About

Vilex H2

Contact Your RepShare

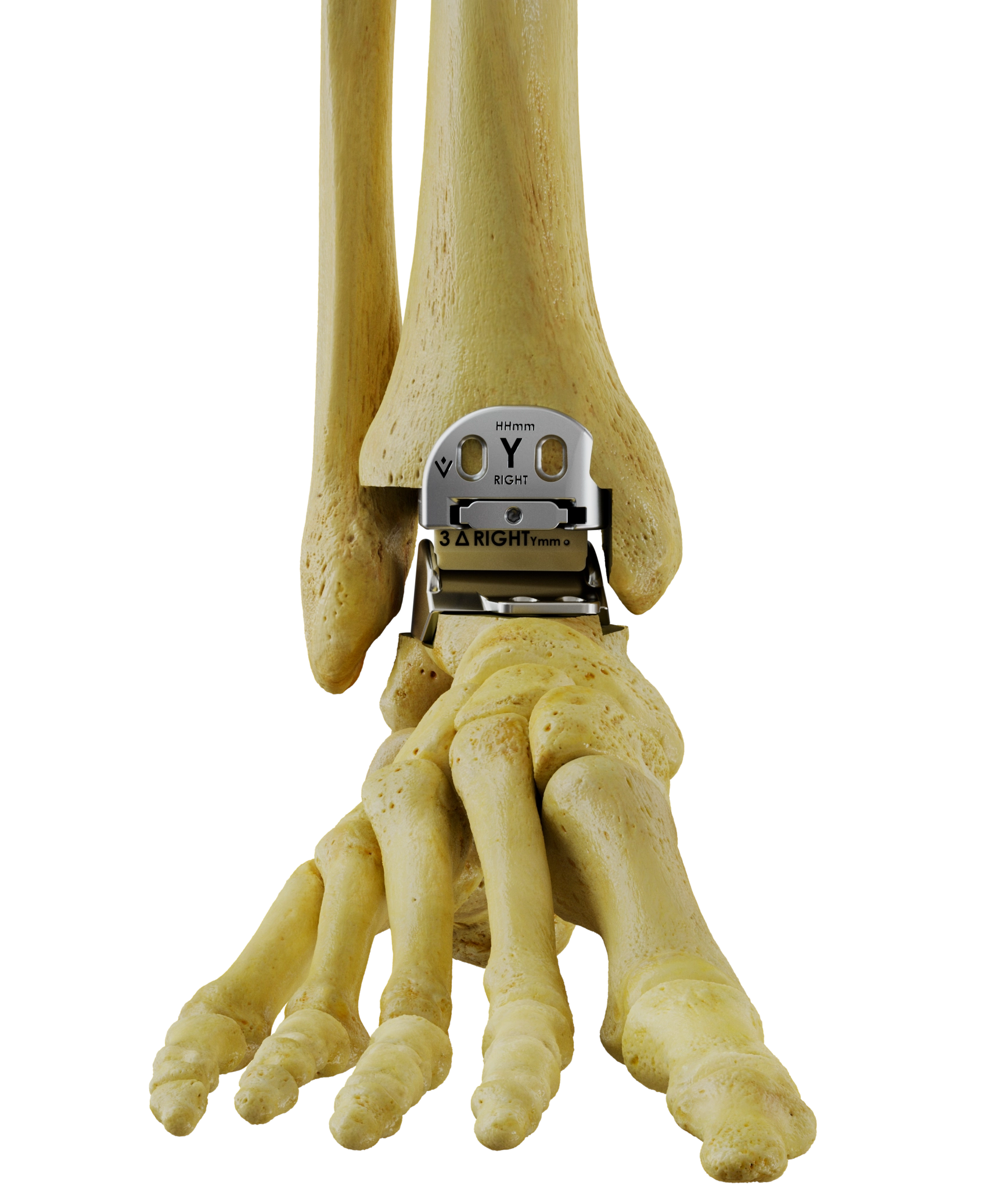

The Hintermann Series H2® Total Ankle Replacement System is intended to replace the ankle joint. The prosthesis is a semi-constrained design that resurfaces the tibia and talus by minimal bone resection, incorporates a constrained inlay, and integrates adjustable inlay orientation relative to the tibial axis.

The system includes the following implantable components: Hintermann Series H2® tibial assembly, Hintermann Series H2® vitamin E polyethylene (PE) inlay assembly, and Hintermann Series® talar component.

The Hintermann Series H2 is indicated as a total ankle replacement in primary or revision surgery of ankle joints damaged by:
‍
Systemic arthritis of the ankle (e.g., rheumatoid arthritis, hemochromatosis)
Primary arthritis (e.g., degenerative disease)
Secondary arthritis (e.g., post-traumatic, avascular necrosis, provided enough of the talus is preserved to support the implant

ABOUT THE VILEX H2

SYSTEM FEATURES AND KEY BENEFITS
High intrinsic stability
Low contact stresses to the bone
Low ligament stress
Minimized wear
Tibial Component
Poly (PE) Inlay
Talar Component

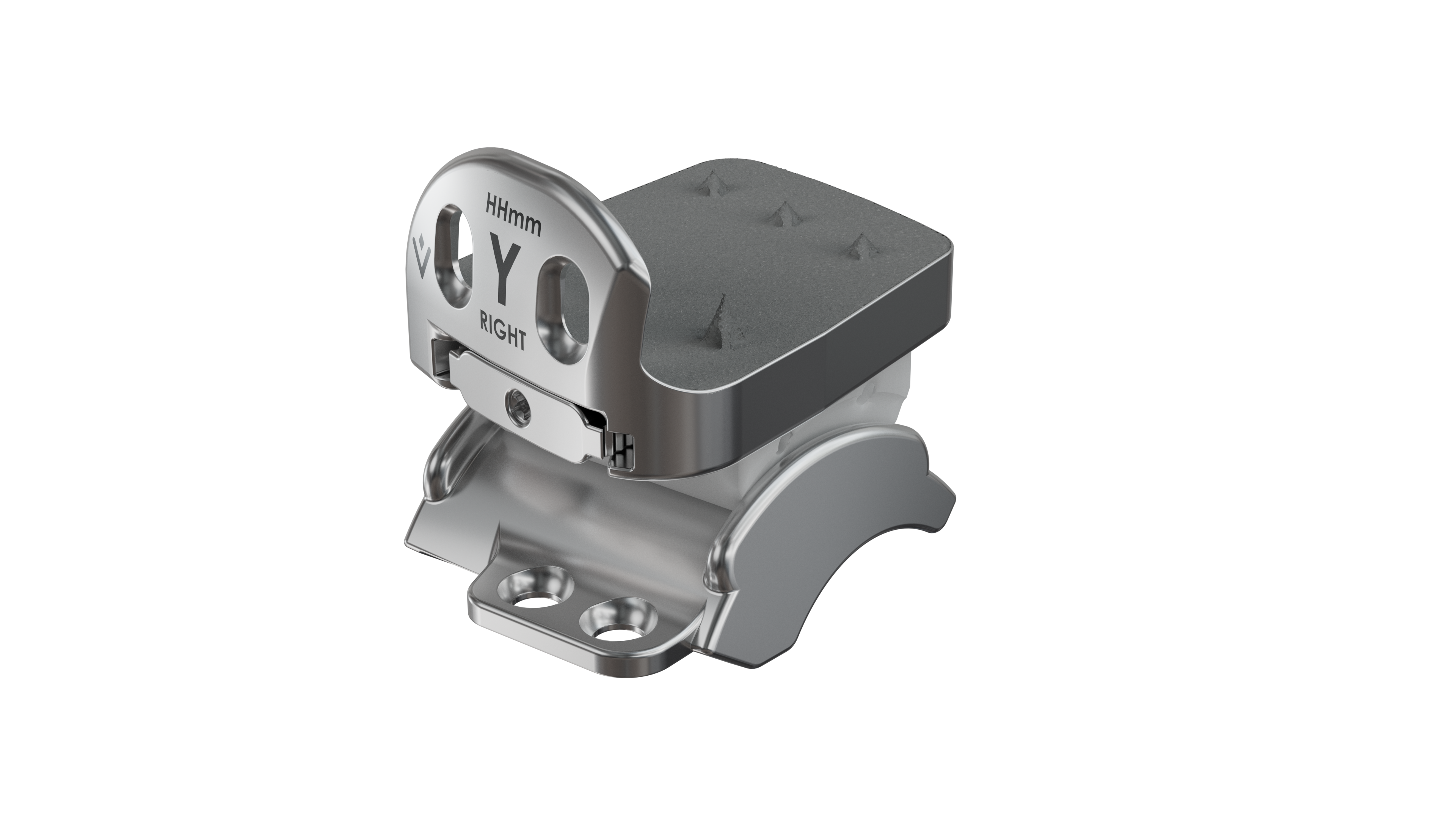

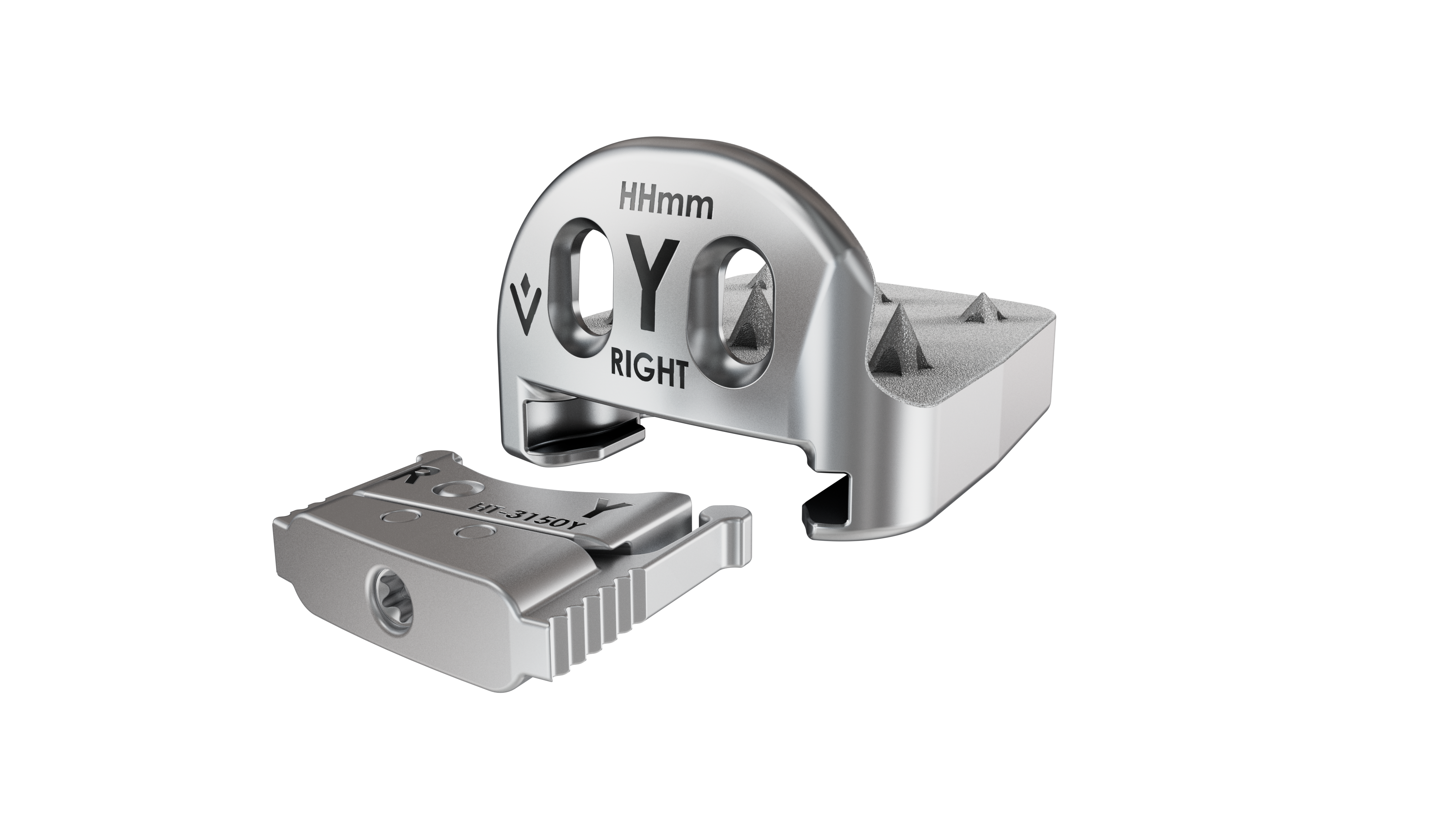

TIBIAL COMPONENT

Anatomical shape for minimized contact stress to the bone.
Minimal bone resection required.
Low profile anterior shield designed to provide rotational stability of tibial component and prevent scarring and bone formation that may hinder joint motion.
Titanium peaks designed for anchoring in subchondral bone toward increasing stability in translation and rotation.
Ti Plasma spray coating.
Sizes: 1, 2, 3, 4, 5

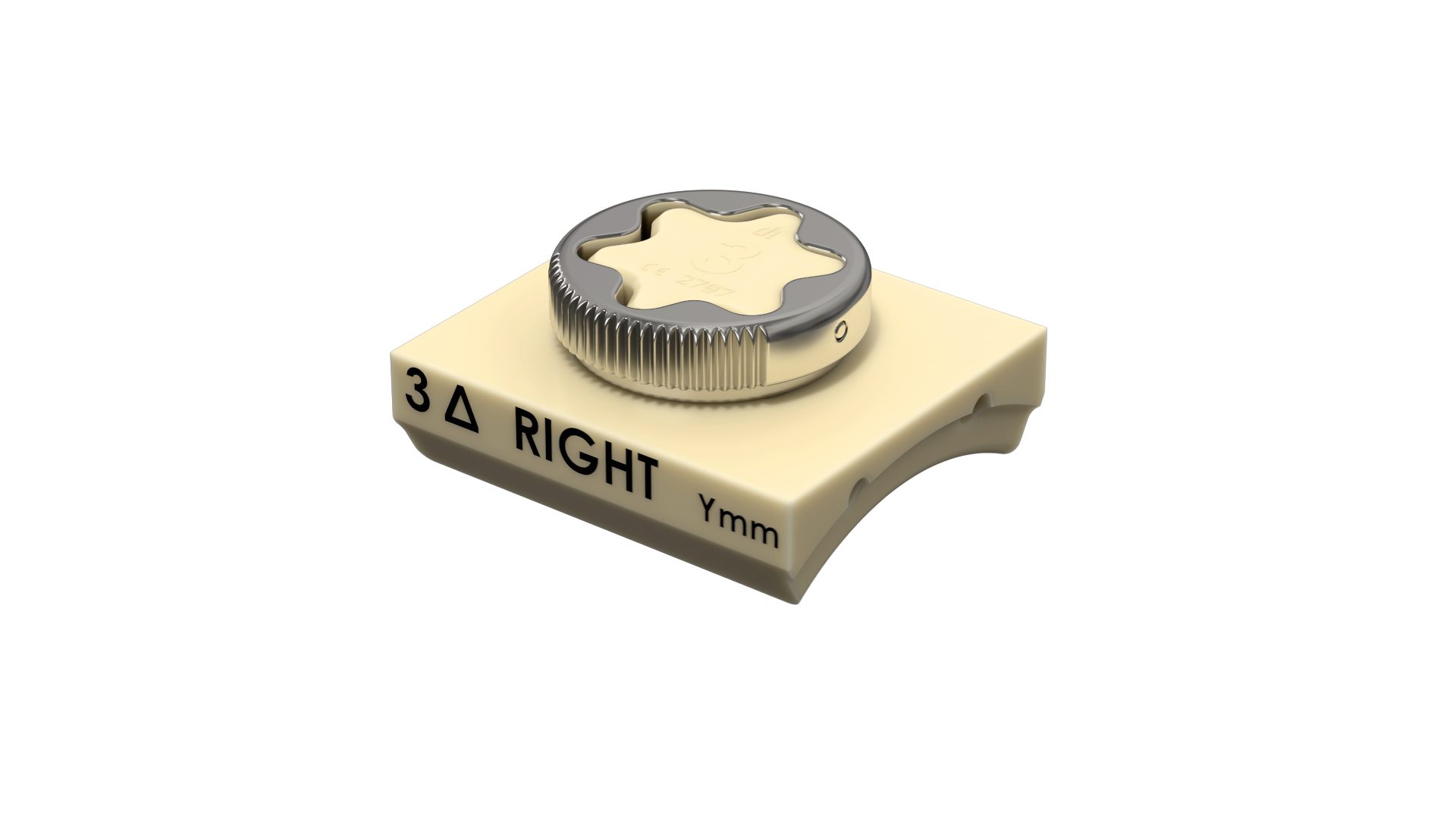

POLY (PE) INLAY

High congruency with the metal surfaces of both tibial and talar components.
Free sagittal plane motion on conically-shaped talar surface.
Large contact area with both tibial and talar components designed to provide:
Low contact stresses
Minimal wear
Intrinsic stability against eversion-inversion forces
X-ray Markers (Titanium Alloy Ti6Al4V)
Sizes: 0, 1, 2, 3, 4, 5

TALAR COMPONENT

Anatomical shape (conical surface) designed:
To allow physiological talar motion
To minimize medial ligament stress
Minimal bone resection required.
Anterior pegs designed to improve sagittal stability and positioning.
Medial and lateral rims designed to guide movement of the PE Inlay.
Anterior shield designed to prevent ingrowth of osteophyte.
US Market: Ti Plasma spray coating.
OUS Market: Ti / HaP spray coating.
Sizes: 0, 1, 2, 3, 4, 5

A Serious Upgrade to the Hintermann Series

OPTIX™ H2 Patient Specific Instrumentation System is a patient specific surgical planning and instrumentation to assist in the positioning of total ankle replacement components intraoperatively, and in guiding bone cutting.
Through the combination of 3D engineering and the patient’s own CT scan, a patient-specific preoperative plan is developed and tailored to fit surgeon preferences. Implant sizing and alignment are determined using the patient’s anatomic landmarks, and DuraForm® PA (nylon) Preoperative Navigation Cut Guides are then created which set resection guide locations.

  • Reduced Surgical Procedural Complexity

  • Decreased Operating Time

  • Rapid 3D Printing Technology - From CT Scan to Surgey in 4 weeks

Tibial Cut Guide
Talar Cut Guide
M / L Talar Cut Guide

OPTIX Patient Specific Instrumentation Surgical Technique Guide

Learn more about the latest addition to the Hintermann Series System, OPTIX Patient Specific Instrumentation.

This surgical technique demonstrates how OPTIX Patient Specific Cut Guides are used to reduce procedural complexity and reduce operating time.

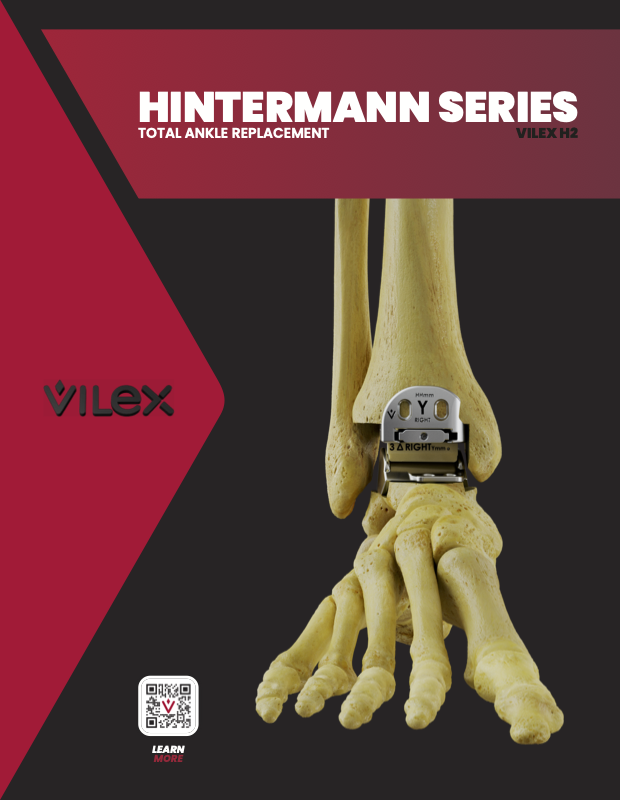

Resources

SURGICAL TECHNIQUE

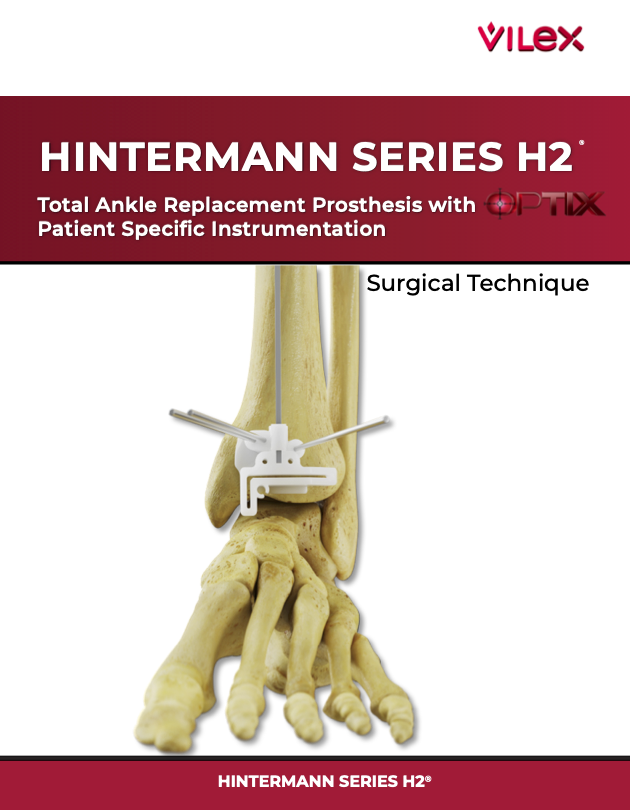

OPTIX Surgical Technique for the Vilex H2
Download

SURGICAL TECHNIQUE

Download
