External Ring Fixation System
ONE SYSTEM, UNLIMITED EXTERNAL FIXATION

DYNEX combines powerful innovation with classic Illizarov external fixation components and principals to deliver unlimited external fixation all in one comprehensive system.
The DYNEX External Fixation System is designed to address stabilization of fractures and osteotomies, rear and midfoot arthrodesis, adult and pediatric leg lengthening, and correction of bone deformity in upper and lower extremities.
Applications
Reimagined Components

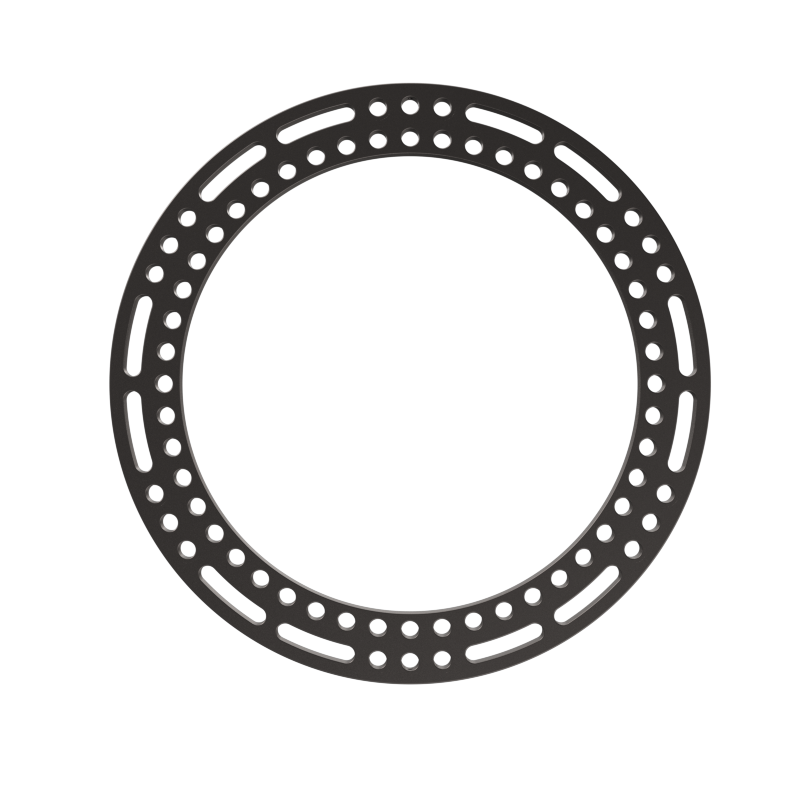

Enhanced Ring Design
DYNEX rings provide the freedom to choose between slotted or holed technology, all in low profile ring. The concentric ring design also allows for simple sizing up or down between rings to fit patient anatomies

HA Coated Wires & Pins
DYNEX is the only adult external fixation system that brings the power of Hydroxyapatite (HA)coating to both fixation options. HA coating has been clinically proven to significantly reduce loosening and pin site infection.

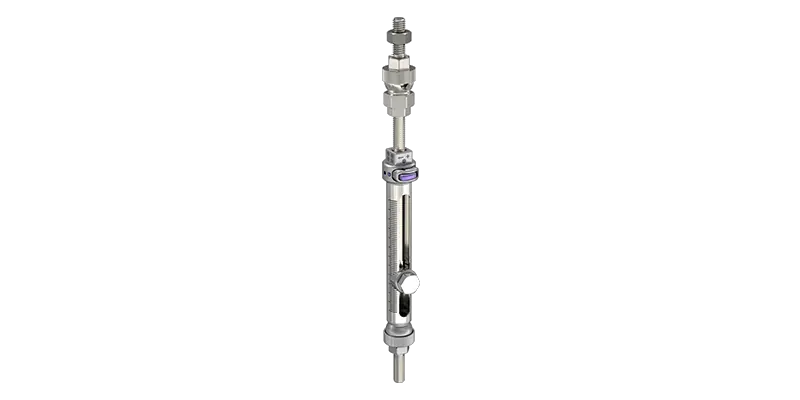

Speed Struts
Corrections made Speedy. DYNEX Speed Struts are designed to quickly lock in the correction and length with a simple push and twist - and deliver up to +/- 50° degrees of multiplanar angulation as well as compression and distraction.
Gradual compression and distraction can also be achieved with Speed Struts by turning the Adjustement Knob, in .25mm increments.

Double-Telescopic Struts
The double-telescopic struts provide both gradual and gross adjustment, with fewer strut changes.This allows the struts to be utilized in both acute or gradual correction using CORREX deformity correction software.

Footplates, Full, 5/8, Half, 3/8 anodized rings
130mm, 155mm, 180mm, 205mm and 230mm Ring Sizes - 255mm available upon request
Smooth/Olive Bayonet, Drill/Trocar Tip wires, and Half-Pins for bone fixation
Classic External Fixation hardware with refined features for stable fixation
Specialty components such as hinges, z-plates, and linear distractors for complex cases and extreme deformity correction
Attachable shoe provides spring-walk technology mimicking the natural load and feel of a step
Wire Fixation & Half-Pin bolts
Plates and Posts
Support Rods
Linear Actuators

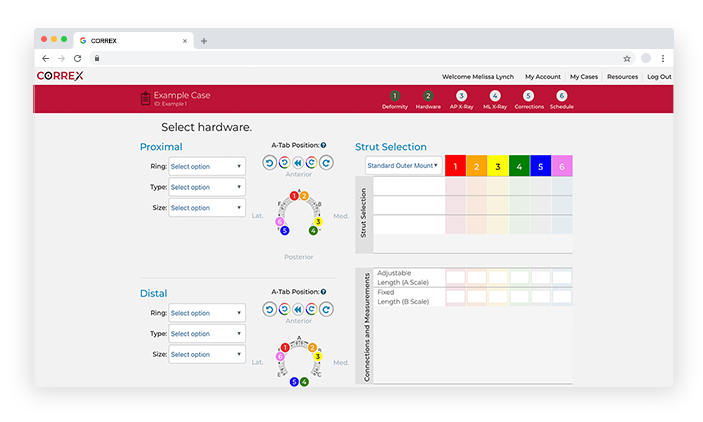

Paired with DYNEX Double-Telescopic Struts, CORREX Deformity Correction Software is designed to deliver powerful six-axis deformity correction all within an intuitive, easy to use software application.
Pre-Operative plans may change intraoperatively. CORREX quickly and easily adjusts post-operative care plans to meet the complex, dynamic needs of patients.

Ring Components





Hardware Components










ONE SYSTEM, UNLIMITED EXTERNAL FIXATION
DYNEX was designed to deliver the power of versatility all within one comprehensive system. From standard wound off-loading to extreme deformity, DYNEX helps tackle it all.
Learn more about the features that help DYNEX deliver external fixation as dynamic as the needs of patient.
UNLIMITED FIXATION, MADE FASTER
As the newest addition to the DYNEX External Fixation System, Speed Struts deliver the unlimited external fixation you've come to expect - even faster. DYNEX Speed Struts allow for up to +/- 50 degrees of multiplanar angulation as well as compression and distraction.
The Speed Lock allows for quickly locking in correction and length with a simple push and twist Speed Lock. However, gradual compression and distraction can also be achieved with Speed Struts by turning the Adjustment Knob, in .25mm increments.
